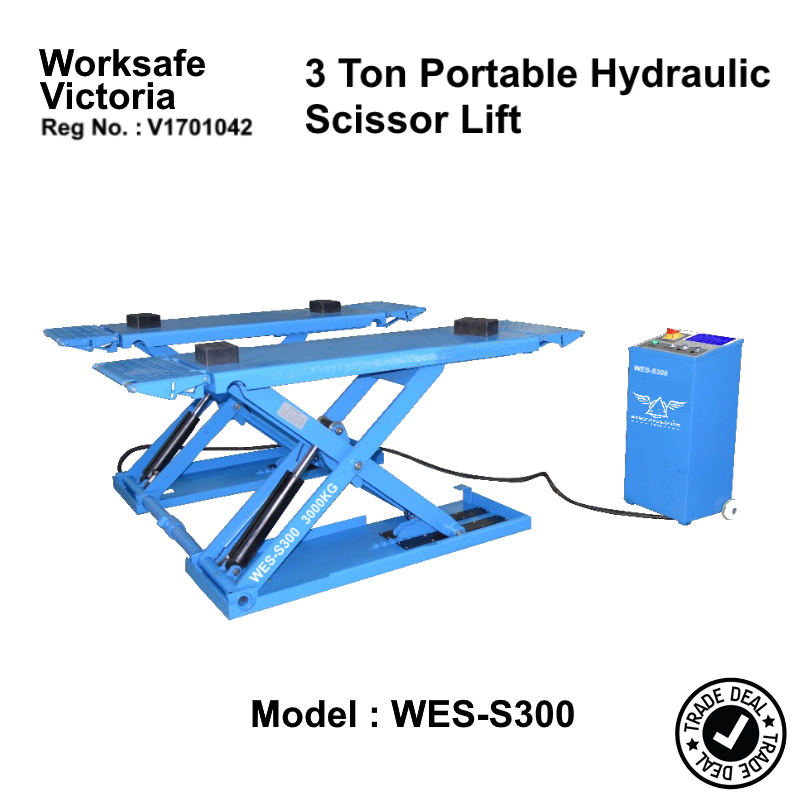

      3 Ton Portable Hydraulic Scissor Lift: WES-S300

      SKU: WES-S300

      $3,200.00

      ($2,909.09 ITEM PRICE + $290.91 GST)

      Features :

      • Conform to Australian Standard, Work Safe Vic approved : V1701042.
      • Scissor arms are made from 16mm x 80mm Cold Drawn steel  bar.  Cold drawn steel has the benefits of increased strength, improved surface finish and improved straightness.
      • The platform steel used is 6mm thick.  It is reinforced with steel stiffeners.

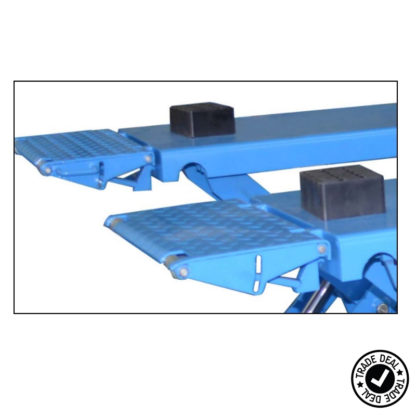

      • The ramp is made with double layer of 3mm checkered steel plate.
      • The cylinder synchronizing system ensures that both platforms raise or descent in synchronize manner.

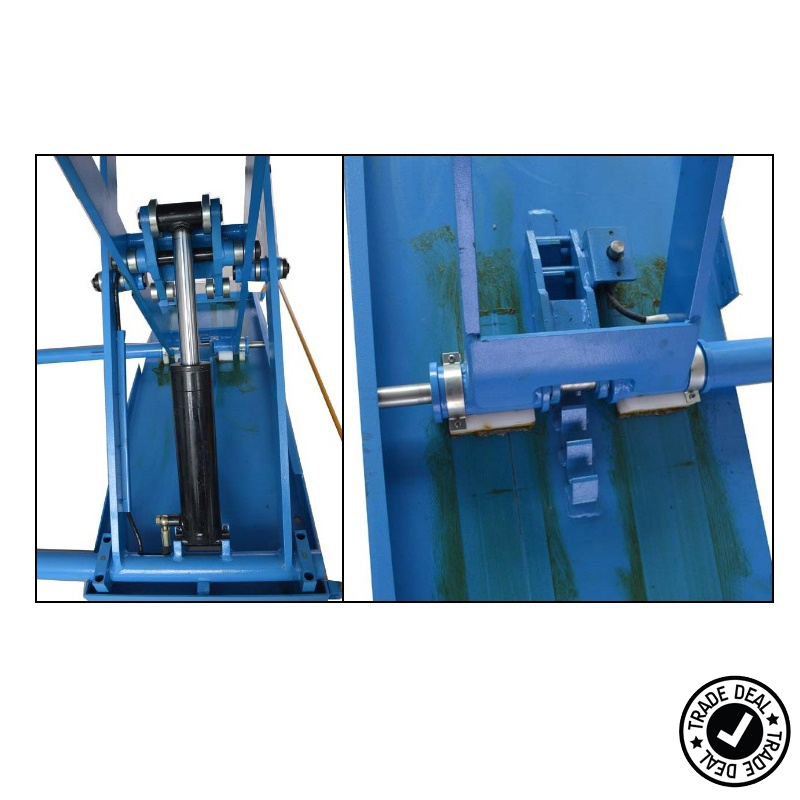

      • Hydraulic cylinder is 70mm diameter.  Piston is 38mm diameter.  These sizes are very strong for performance in this lift.  The Italy Aston oil seal is used.  And the Taiwanese dust proof seal is used for better seal and performance of the hydraulic cylinder.  Better sealing enhance equipment lift.
      • Resin high pressure hose is used to prevent bursting.
      • Powder coated finish.
      Add to Wishlist
      Add to Wishlist
      SKU: WES-S300 Categories: ,
        • Home & business delivery
        • Business special pricing
        • In-store click & collect
        • Multiple Payment Options
        • Phone 1300 084 965

        Connect with us

      Description

      Technical Specifications :

      • Power : 2.2kw (240V)
      • Lifting capacity : 3000kg
      • Maximum lifting height : 1000mm
      • Lift minimum stand height : 110mm
      • Overall width : 1760mm
      • Platform length : 1420-2015mm
      • Space between platforms : 690mm
      • Lifting time (240V) : 50-60sec
      • Noise : 70db (A) 1m
      • Operating temperature : 10°C/+50°C
      • Work environment : Closed room

      *Photo is for illustration purpose only.  Actual item and/or specifications may vary due to regular product improvement. Please check before ordering.

      Product Warranty : 1 year on electrical, hydraulic and parts, except rubber pads and wear and tear.

      AFTER PURCHASE FREE 1-HOUR FAMILIARISATION TRAINING AVAILABLE IN OUR SHOP

      Please email us the Suburb and Post Code to get quote for freight.  We also need to know if there is forklift at your premises to unload.  If there is no forklift, you may have to collect from the depot nearest to your area.

      Packaging :

      • 180cm (L) x 160cm (W) x 25cm (H), 500kg
      • 95cm (L) x 50cm (W) x 45cm (H), 75kg





      Additional information

      3 Ton Portable Hydraulic Scissor Lift: WES-S300. Power: 2.2kw (240V); Lifting capacity: 3000kg; Maximum lifting height: 1000mm; Lift minimum stand height: 110mm.
